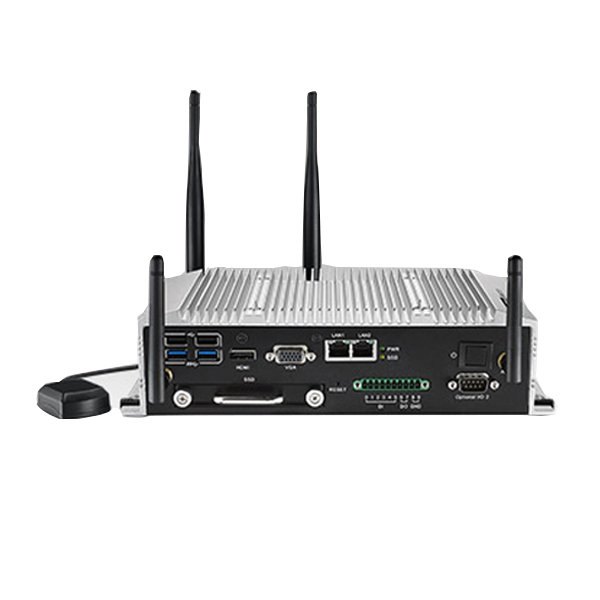

Advantech ARK-2121V 4 PoE Araç İçi NVR
Genel Özellikler
- Intel® Atom E3845 Quad Core 1.91 GHz İşlemci
- IP Kamera Bağlantısı İçin4 Adet PoE Port
- İzoleli COM ve DIO Portları
- Gelişmiş Haberleşme Bağlantıları
- GIS uygulamaları için dahili GPS ve G-Sensor
- Araç Tipi Programlanabilir Akıllı Güç Yönetimi
- İzoleli 9 ~ 36 VDC Girişi
- 1 Adet Hot-Swap 2.5″ Hard Disk Yuvası
- iManager, SUSIAccess ve Embedded Software API/SDK Desteği
Advantech ARK-2121V 4 PoE Araç İçi NVR, araç içi uygulamalar için geliştirilmiş 4 POE portuna sahip Intel® Atom E3845 İşlemcili Fansız NVR Sistemi.
Specifications
ARK-2121V-S9A1E ARK-2121V-S3A1E
Processor System
CPU Intel Atom E3845 QC SoC Intel Atom E3825 DC SoC
Frequency 1.91 GHz 1.33 GHz
L2 Cache 2 MB 1 MB
BIOS AMI EFI 64 Mbit
Memory
Technology DDR3L 1333 MHz DDR3L 1066 MHz
Max. Capacity 8 GB
Socket 1 x 204-pin SO-DIMM
Graphics
Chipset Intel Gen7 Graphics
Graphic Engine DirectX11, OpenGL3.2, OpenCL1.1
Full HW acceleration, decode: H.264, MPEG2/4, VC-1, WMV9. Encode: H.264, MPEG2
VGA Up to 2560 x 1600 @ 60Hz
HDMI Lockable HDMI connector, up to 1080p
Audio Main System Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in
Ethernet LAN #1 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
LAN #2 10/100/1000 Mbps Intel I210-IT GbE, support Wake on LAN
I/O Interface
Power over Ethernet, PoE
4 x 10/100 Mbps
- 4ports full-load, IEEE802.3af Class 2 (7Watt)
- 2ports full-load, IEEE802.3af Class 3 (15.4Watt)
N/A
Serial Ports N/A 2 x RS-232/422/485 ports w/ 3KV isolation
(support auto flow control, jumper selectable)
Optional COM or CANBus 2 x DB9 connectors for RS-232/422/485 signal (Default) or CANBus 2.0A/B (Module option)
GPIO
6 x DI & 2 x DO w/ 3KV isolation
Input Voltage: 0 to 30 VDC,
Output Current: Max. 500 mA per channel
On-state Voltage: 24 VDC nominal, open collector to 30 VDC
USB 3 x USB 2.0 & 1 x USB3.0
Other
GPS On board standalone GPS, support GPS, GLONASS and QZSS signals
G-Sensor On board high resolution G-Sensor, up to 13-bit resolution at ± 16g
Watchdog timer 255-level timer interval, setup by software
Expansion
Mini PCIe #1 Full-size Mini PCIe, support mSATA
Mini PCIe #2 Full-size Mini PCIe, support WLAN module
Mini PCIe #3/4 2 x Full-size Mini PCIe w/SIM holders, support WWAN module. (USB interface)
Storage 2.5" Drive Bay 1 x removable 2.5" drive bay (Max 9.5mm height)
mSATA Laverage MiniPCIe #1 slot
Software Support Microsoft Windows WES8, WES7, Windows 8, Windows 7
Linux Support by project
Power Requirement
Power Type ATX/AT
Power Input Voltage* 9 ~ 36 VDC w/isolation
Vehicle Power Ignition Selectable boot-up & shut-down voltage, on/off delay time
Isolation 1.5KV Isolated
Mechanical
Construction Aluminum housing, Silver
Mounting Din-Rail mounting, Desk/wall-mounting, VESA mounting
Dimensions (W x H x D) 264.5 x 69.2 x 133.0 mm
Environment
Operating Temperature
With extended temperature peripherals:
-30~60° C with 0.7m/s air flow
With standard temperature peripherals:
0 ~ 45° C with 0.7m/s air flow
With extended temperature peripherals:
-30~70° C with 0.7m/s air flow
With standard temperature peripherals:
0 ~ 45° C with 0.7m/s air flow
Storage Temperature -40 ~ 85° C (-40~185° F)
Relative Humidity 95% @ 40° C (non-condensing)
Vibration/Shock With mSATA/SSD: IEC 60721-3-5 Class 5M3
Regulation
EMC CE/FCC Class A, CCC, BSMI
Safety UL, CCC, BSMI, E-Mark (E13)
In-Vehicle Power ISO7637-2 Lev.4
